Name: Charpy Charpy Notched Impact Strength Testing Machine|Equipment|Tester
Brand: Charpy Charpy Notched Impact Strength Testing Machine|Equipment|Tester
SKU: PIT 300/500/800
Price: 1 USD
Availability: InStock
Rating: 4.8 (108 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Model Number: PIT 300/500/800

Power: Electronic

Certificate: ISO 9001

Standard: ASTM E23, ISO148

Application: Charpy,IZOD

Capacity: 300J/500J/800J

Warranty: 1 Year

Training: online or on-site

Power supply: 380V 50HZ 5A Three Phase

Product name: Charpy notched impact strength testing machine|equipment|tester

Основная информация

Сертификация: ISO 9001

Model Number: PIT 300/500/800

Оплата и доставка Условия

Packaging Details: Inner pack: Wrapped by plastic film. Outer pack: Veneer case

Supply Ability: 100 Set/Sets per Year

Характер продукции

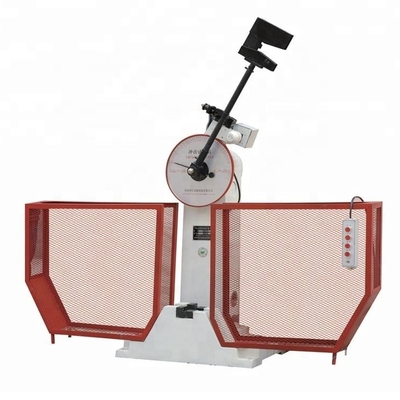

Charpy notched impact strength testing machine

The series of pendulum impact tester are mainly used to measure the Charpy impact resistance of metal materials under dynamic load, so as to judge the quality of materials under dynamic load.

Standards: ISO 148, EN10045, ASTM E23

PIT semi-automatic impact testing machine

The equipment adopts semi-automatic control and dial pointer display. Automatic swing can be realized by using the residual energy of impact test.

Compact structure and simple operation.

PIT-D Digital display impact testing machine

The equipment adopts semi-automatic control. Automatic swing can be realized by using the residual energy of impact test.

Two display modes: LCD Digital display and dial pointer display.

Model	PIT-300B PIT-D-300 PIT-PC-300	PIT-500B PIT-D -500 PIT-PC-500	PIT-800B PIT-D-800 PIT-PC-800
Impact energy	300J/150J	500J/250J	800J/500J
Release Angle	150°
Pendulum length	750mm	800mm	850mm
Impact velocity	5.2m/s	5.4m/s	5.9m/s
Sample support span	40mm
Hammer thickness	16mm
Hammer radius	R2-2.5mm
Radius of curvature of supports	R1-1.5mm
Sample size	10mm10mm55mm
Power supply	380V 50HZ 5A
Weight	450kg	650kg	2300kg

Packaging & Shipping

Certificates

1.ISO 9001-2015 Quality management system certification

2.Registered Mark certificate

3.Member of Shandong Association of Special Equipment

4.Radiation safety permit

1.Brake caliper adjusting mechanism for brake real sample friction tester

2.Merchanical performance testing machine for dip net

3.Portable X-ray welding seam detection special bracket

4.Weld seam detection synchronous crawling device

5.A pendulum impact testing machine

6.A Brake pad grinding mechanism

7.A static load testing machine for concrete sleepers

8.A drag testing machine for friction properties of brake lining friction materials

9.Special net rod fixture for fishing gear testing

Company Information

Shandong Yuxi Instruments Co.,Ltd. is founded in 2006 with a registered capital of 20 million RMB, specializing in manufacturing Mechanical testing & lift testing equipment. Strictly conducts ISO 9001-2015 whole processing and quality control.
Our company serves the well-known Special equipment testing institutions; lift and escalator manufacturers; lift,escalator and crane installation and maintain companies all the year round. Provide customers with testing equipment, professional technical consulting, complete laboratory planning and customization services.
With years of sales and service experience, we have deeply understood the needs of customers. We have established lift & escalator testing instruments department, carrying out R&D, design, production and sales of instruments and equipment.

Our product range:
1.Elevator and escalator testing instruments:
2. Crane testing instruments
3.Forklift testing instruments
4.Laser alignment and measuring tool

Factory

Benny

Shandong Yuxi Instruments Co., Ltd.

Mobile: 0086 188 66878778 (Whatsapp & Wechat)
Tel: 0086-531-82687977 ext 802
Fax: 0086-531-82687744
