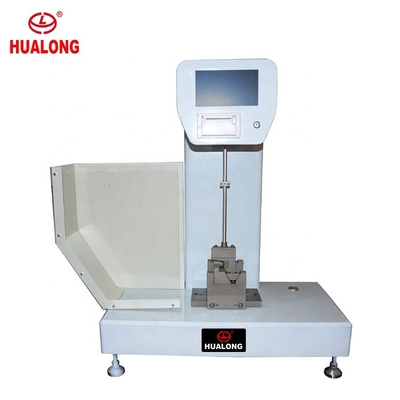

Name: HUALONG 5.5J, Horniness 22J PVC Digital Display Plastic Charpy Izod Impact Testing Machine HUALONGJD
Brand: HUALONG 5.5J, Horniness 22J PVC Digital Display Plastic Charpy Izod Impact Testing Machine HUALONGJD
SKU: HUALONGJD
Price: 1 USD
Availability: InStock
Rating: 5 (129 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Warranty: 1 Year, 12 Month

Customized support: OEM, ODM, OBM

Model Number: HUALONGJD

Power: Electronic

Brand: HUALONG

Product name: Impact Testing machine

Accuracy: 0.5/ 1 Grade

Test Force Range(KN): 5.5J ,22J

Original: China

Power supply: 220V/380V

Delivery time: Within 20 Days

Location: Shanghai

Stroke of Piston(mm): 50-75

Сертификация: ISO, CE

Основная информация

Сертификация: ISO, CE

Model Number: HUALONGJD

Оплата и доставка Условия

Packaging Details: Standard export polywood case

Supply Ability: 20 Set/Sets per Month

Характер продукции

Application:

The electronic type adopts rasterdisplay technique of measuring circle angle, with the characteristics of high precision, good stability and wide range of measuring, digital display of testing split strength, impact intensity,foreelevation, ascending angle, automatic correcting the loses energy revises .

Technical parater:

Specimen no.	Length(l)	Width (b)	Thickness (d)	Distance between support lines (L)
1	80±2	10±0.5	4±0.2	62
2 3	25h 11h or 13h	10 or 15	3	20h 6h or 8h
Model:		HULONGJD—5			HUALONGJD-50
Impact speed		2.9m/s			3.8m/s
Impact energy		0.5,1.0,2.0,4.0,5.0J			7.5,15.0,25.0,50.0J
Impact pendulum moment		Pd0.5=0.26795Nm Pd1=0.53590Nm Pd2=1.07180Nm Pd4=2.14359Nm Pd5=2.67949Nm			Pd7.5=4.01924Nm Pd15=8.03848Nm Pd25=13.39746Nm Pd50=26.79492Nm
Rising Angle Of Pendulum		150⁰
Pendulum Impact Center To Impact Blade Distance		230mm
Blade Corner Radius		(2±0.5)mm
Impact angle of blade		(30±1)⁰
Supporting Blade Corner Radius		(1.0±0.1)mm
Distance between jaw support lines		62			62
